Finite Difference Methods for the Poisson Equation¶

This notebook will focus on numerically approximating a inhomogenous second order Poisson Equation.

The Differential Equation¶

The general two dimensional Poisson Equation is of the form: $$ \frac{\partial^2 u}{\partial y^2} + \frac{\partial^2 u}{\partial x^2}=f(x,y), \ \ \ (x,y) \in \Omega=(0,1)\times (0,1),$$ with boundary conditions $$U(x,y) = g(x,y), \ \ \ (x,y)\in\delta\Omega\text{ - boundary}. $$

Homogenous Poisson Equation¶

This notebook will implement a finite difference scheme to approximate the inhomogenous form of the Poisson Equation $f(x,y)=100(x^2+y^2)$: $$ \frac{\partial^2 u}{\partial y^2} + \frac{\partial^2 u}{\partial x^2}=100(x^2+y^2).$$ with the Boundary Conditions: $$ u(x,0)=\sin(2\pi x), \ \ \ \ \ 0 \leq x \leq 1, \text{ lower},$$ u(x,1)=\sin(2\pi x), \ \ \ \ \ 0 \leq x \leq 1, \text{ upper},$$ u(0,y)=2\sin(2\pi y), \ \ \ \ \ 0 \leq y \leq 1, \text{ left},$$ u(1,y)=2\sin(2\pi y), \ \ \ \ \ 0 \leq y \leq 1, \text{ right}.$$

# LIBRARY
# vector manipulation
import numpy as np
# math functions
import math

# THIS IS FOR PLOTTING
%matplotlib inline
import matplotlib.pyplot as plt # side-stepping mpl backend
import warnings
warnings.filterwarnings("ignore")
from IPython.display import HTML
from mpl_toolkits.mplot3d import axes3d
import matplotlib.pyplot as plt

Discete Grid¶

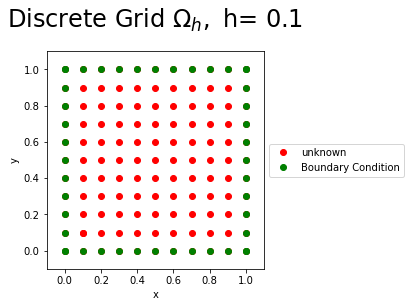

The region $\Omega=(0,1)\times(0,1)$ is discretised into a uniform mesh $\Omega_h$. In the $x$ and $y$ directions into $N$ steps giving a stepsize of $$ h=\frac{1-0}{N},$$ resulting in $$x[i]=0+ih, \ \ \ i=0,1,...,N,$$ and $$x[j]=0+jh, \ \ \ j=0,1,...,N,$$ The Figure below shows the discrete grid points for $N=10$, the known boundary conditions (green), and the unknown values (red) of the Poisson Equation.

N=10
h=1/N
x=np.arange(0,1.0001,h)
y=np.arange(0,1.0001,h)
X, Y = np.meshgrid(x, y)
fig = plt.figure()
plt.plot(x[1],y[1],'ro',label='unknown');
plt.plot(X,Y,'ro');
plt.plot(np.ones(N+1),y,'go',label='Boundary Condition');
plt.plot(np.zeros(N+1),y,'go');
plt.plot(x,np.zeros(N+1),'go');
plt.plot(x, np.ones(N+1),'go');
plt.xlim((-0.1,1.1))
plt.ylim((-0.1,1.1))
plt.xlabel('x')
plt.ylabel('y')
plt.gca().set_aspect('equal', adjustable='box')
plt.legend(loc='center left', bbox_to_anchor=(1, 0.5))
plt.title(r'Discrete Grid $\Omega_h,$ h= %s'%(h),fontsize=24,y=1.08)
plt.show();

../_images/903_Poisson_Equation_Boundary_3_0.png

Boundary Conditions¶

The discrete boundary conditions are $$ w_{i0}=w[i,0]=\sin(2\pi x[i]), \text{ for } i=0,...,10, \text{ upper},$$

\[ w_{iN}=w[i,N]=\sin(2\pi x[i]), \text{ for } i=0,...,10, \text{ lower},\]

\[ w_{0j}=w[0,j]=2\sin(2\pi y[j]), \text{ for } j=0,...,10, \text{ left},\]

\[ w_{Nj}=w[N,j]=2\sin(2\pi y[j]), \text{ for } i=0,...,10,\text{ right}. \]

The Figure below plots the boundary values of $w[i,j]$.

w=np.zeros((N+1,N+1))

for i in range (0,N):
        w[i,0]=np.sin(2*np.pi*x[i]) #left Boundary
        w[i,N]=np.sin(2*np.pi*x[i]) #Right Boundary

for j in range (0,N):
        w[0,j]=2*np.sin(2*np.pi*y[j]) #Lower Boundary
        w[N,j]=2*np.sin(2*np.pi*y[j]) #Upper Boundary


fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
# Plot a basic wireframe.
ax.plot_wireframe(X, Y, w,color='r', rstride=10, cstride=10)
ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('w')
plt.title(r'Boundary Values',fontsize=24,y=1.08)
plt.show()

../_images/903_Poisson_Equation_Boundary_5_0.png

Numerical Method¶

The Poisson Equation is discretised using $\delta_x^2$ is the central difference approximation of the second derivative in the $x$ direction $$\delta_x^2=\frac{1}{h^2}(w_{i+1j}-2w_{ij}+w_{i-1j}), $$ and $\delta_y^2$ is the central difference approximation of the second derivative in the $y$ direction $$\delta_y^2=\frac{1}{h^2}(w_{ij+1}-2w_{ij}+w_{ij-1}). $$ The gives the Poisson Difference Equation, $$-(\delta_x^2w_{ij}+\delta_y^2w_{ij})=f_{ij} \ \ (x_i,y_j) \in \Omega_h, $$w_{ij}=g_{ij} \ \ (x_i,y_j) \in \partial\Omega_h, $$ where $w_ij$ is the numerical approximation of $U$ at $x_i$ and $y_j$. Expanding the the Poisson Difference Equation gives the five point method, $$-(w_{i-1j}+w_{ij-1}-4w_{ij}+w_{ij+1}+w_{i+1j})=h^2f_{ij} $$ for $i=1,…,N-1$ and $j=1,…,N-1.$

Matrix form¶

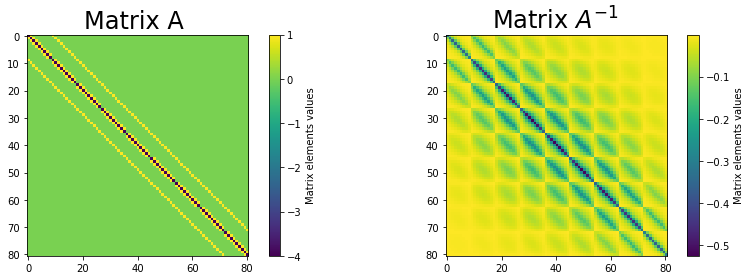

This can be written as a system of $(N-1)\times(N-1)$ equations can be arranged in matrix form $$ A\mathbf{w}=\mathbf{r},$$ where $A$ is an $(N-1)^2\times(N-1)^2$ matrix made up of the following block tridiagonal structure $$\left(\begin{array}{ccccccc} T&I&0&0&.&.&.\\ I&T&I&0&0&.&.\\ .&.&.&.&.&.&.\\ .&.&.&0&I&T&I\\ .&.&.&.&0&I&T\\ \end{array}\right), $$ where $I$ denotes an $N-1 \times N-1$ identity matrix and $T$ is the tridiagonal matrix of the form: $$ T=\left(\begin{array}{ccccccc} -4&1&0&0&.&.&.\\ 1&-4&1&0&0&.&.\\ .&.&.&.&.&.&.\\ .&.&.&0&1&-4&1\\ .&.&.&.&0&1&-4\\ \end{array}\right). $$ The plot below shows the matrix $A$ and its inverse $A^{-1}$ as a colourplot.

N2=(N-1)*(N-1)
A=np.zeros((N2,N2))
## Diagonal
for i in range (0,N-1):
    for j in range (0,N-1):
        A[i+(N-1)*j,i+(N-1)*j]=-4

# LOWER DIAGONAL
for i in range (1,N-1):
    for j in range (0,N-1):
        A[i+(N-1)*j,i+(N-1)*j-1]=1
# UPPPER DIAGONAL
for i in range (0,N-2):
    for j in range (0,N-1):
        A[i+(N-1)*j,i+(N-1)*j+1]=1

# LOWER IDENTITY MATRIX
for i in range (0,N-1):
    for j in range (1,N-1):
        A[i+(N-1)*j,i+(N-1)*(j-1)]=1


# UPPER IDENTITY MATRIX
for i in range (0,N-1):
    for j in range (0,N-2):
        A[i+(N-1)*j,i+(N-1)*(j+1)]=1
Ainv=np.linalg.inv(A)
fig = plt.figure(figsize=(12,4));
plt.subplot(121)
plt.imshow(A,interpolation='none');
clb=plt.colorbar();
clb.set_label('Matrix elements values');
plt.title('Matrix A ',fontsize=24)
plt.subplot(122)
plt.imshow(Ainv,interpolation='none');
clb=plt.colorbar();
clb.set_label('Matrix elements values');
plt.title(r'Matrix $A^{-1}$ ',fontsize=24)

fig.tight_layout()
plt.show();

../_images/903_Poisson_Equation_Boundary_7_0.png

The vector $\mathbf{w}$ is of length $(N-1)\times(N-1)$ which made up of $N-1$ subvectors $\mathbf{w}_j$ of length $N-1$ of the form $$\mathbf{w}_j=\left(\begin{array}{c} w_{1j}\\ w_{2j}\\ .\\ .\\ w_{N-2j}\\ w_{N-1j}\\ \end{array}\right). $$ The vector $\mathbf{r}$ is of length $(N-1)\times(N-1)$ which made up of $N-1$ subvectors of the form $\mathbf{r}_j=-h^2\mathbf{f}j-\mathbf{bx}{j}-\mathbf{by}_j$, where $\mathbf{bx}_j $ is the vector of left and right boundary conditions $$\mathbf{bx}_j =\left(\begin{array}{c} w_{0j}\\ 0\\ .\\ .\\ 0\\ w_{Nj} \end{array}\right), $$

for $j=1,..,N-1$, where $\mathbf{by}_j$ is the vector of the lower boundary condition for $j=1$,

\[\begin{split} \mathbf{by}_{1} =\left(\begin{array}{c} w_{10}\\ w_{20}\\ .\\ .\\ w_{N-20}\\ w_{N-10}\\ \end{array}\right), \end{split}\]

upper boundary condition for $j=N-1$

\[\begin{split} \mathbf{by}_{N-1} =\left(\begin{array}{c} w_{1N}\\ w_{2N}\\ .\\ .\\ w_{N-2N}\\ w_{N-1N}\\ \end{array}\right), \end{split}\]

for $j=2,...,N-2$ $$\mathbf{by}_j=0,$$ and $$\mathbf{f}_j =100\left(\begin{array}{c} x_1^2+y_j^2\\ x_2^2+y_j^2\\ .\\ .\\ x_{N-2}^2+y_j^2\\ x_{N-1}^2+y_j^2 \end{array}\right) $$ for $j=1,…,N-1$.

r=np.zeros(N2)

# vector r
for i in range (0,N-1):
    for j in range (0,N-1):
        r[i+(N-1)*j]=100*h*h*(x[i+1]*x[i+1]+y[j+1]*y[j+1])
# Boundary
b_bottom_top=np.zeros(N2)
for i in range (0,N-1):
    b_bottom_top[i]=np.sin(2*np.pi*x[i+1]) #Bottom Boundary
    b_bottom_top[i+(N-1)*(N-2)]=np.sin(2*np.pi*x[i+1])# Top Boundary

b_left_right=np.zeros(N2)
for j in range (0,N-1):
    b_left_right[(N-1)*j]=2*np.sin(2*np.pi*y[j+1]) # Left Boundary
    b_left_right[N-2+(N-1)*j]=2*np.sin(2*np.pi*y[j+1])# Right Boundary

b=b_left_right+b_bottom_top

Results¶

To solve the system for $\mathbf{w}$ invert the matrix $A$ $$ A\mathbf{w}=\mathbf{r},$$ such that $$ \mathbf{w}=A^{-1}\mathbf{r}.$$ Lastly, as $\mathbf{w}$ is in vector it has to be reshaped into grid form to plot.

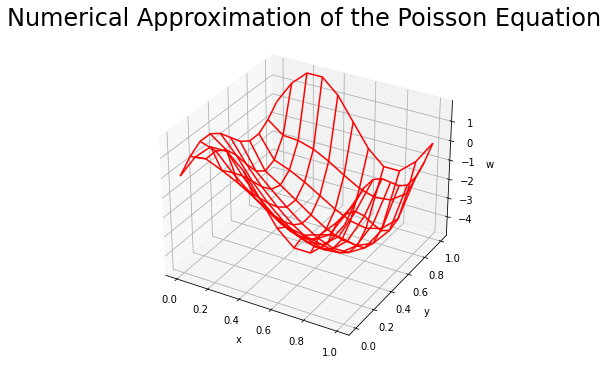

The figure below shows the numerical approximation of the homogeneous Equation.

C=np.dot(Ainv,r-b)
w[1:N,1:N]=C.reshape((N-1,N-1))

fig = plt.figure(figsize=(8,6))
ax = fig.add_subplot(111, projection='3d');
# Plot a basic wireframe.
ax.plot_wireframe(X, Y, w,color='r');
ax.set_xlabel('x');
ax.set_ylabel('y');
ax.set_zlabel('w');
plt.title(r'Numerical Approximation of the Poisson Equation',fontsize=24,y=1.08);
plt.show();

../_images/903_Poisson_Equation_Boundary_11_0.png
